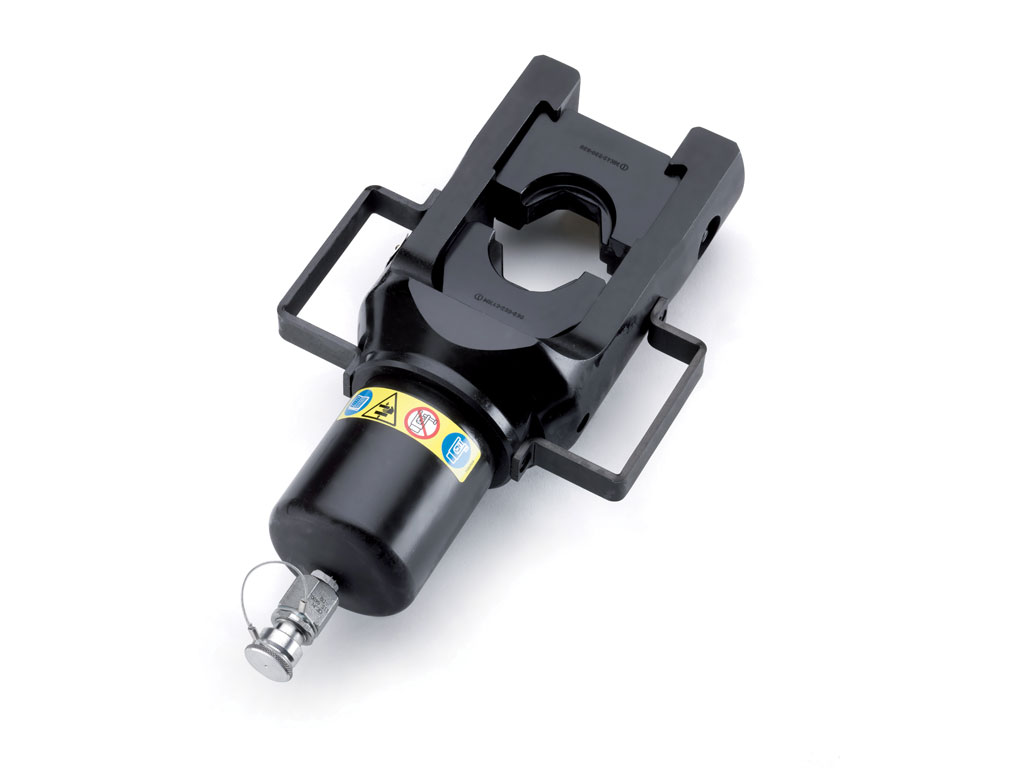

RHU230-630 Hydraulic Presshead

Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.

For crimping up to 630sqmm aluminium (according to HN68 S90).

Adapters AU-230-130-C/N and AU230-PS/E are avialable as an optional extra enabling the head to ulilise the semicircular slotted dies which are common to most 130kN tools.


Crimping Force:  230kN

Dimensions LxW:  365x193mm

Weight:  9.0Kg



Main Applications – max section mm2



Aluminium lugs and splices 630

Copper lugs and splices 400
‘C’ sleeve connectors 185
H.V. lugs and splices 400





Storage case VAL230-630 is supplied with the tool and is suitable for storage of the head.
Storage case VAL MAT 230-630 can be purchased separately and is suitable for storage of the accessories.

To accept dies for crimping up to 630mm² aluminium in accordance with HN 68 S90
