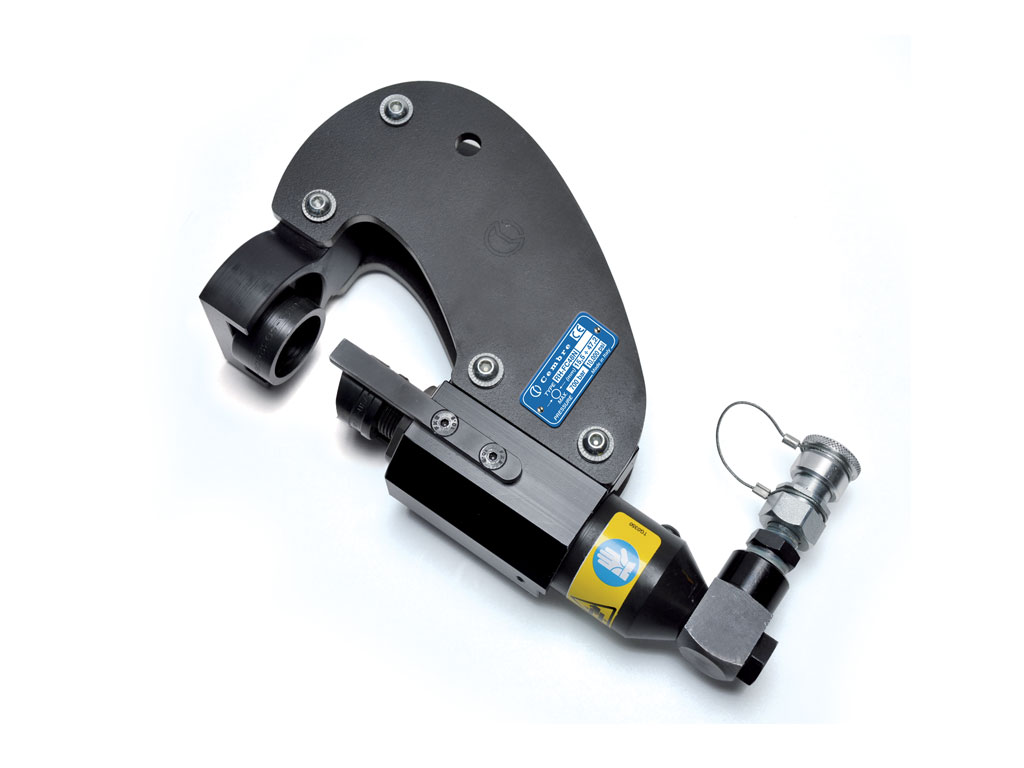

Hydraulic head complete with automatic quick coupler, designed for punching holes from 15.5 to 47.2mm diameter in the side wall of trunking without the need for pre-drilling.
For operation the head must be joined to a hydraulic pump, developing a pressure of 700 bar.
For die information, see datasheet.
Maximum Peircing Diameter: 47.2mm
Maximum centre of hole to edge of trunking: 53.5mm
Dimensions LxW: 259.5×147.5mm
Weight: 3.7kg
