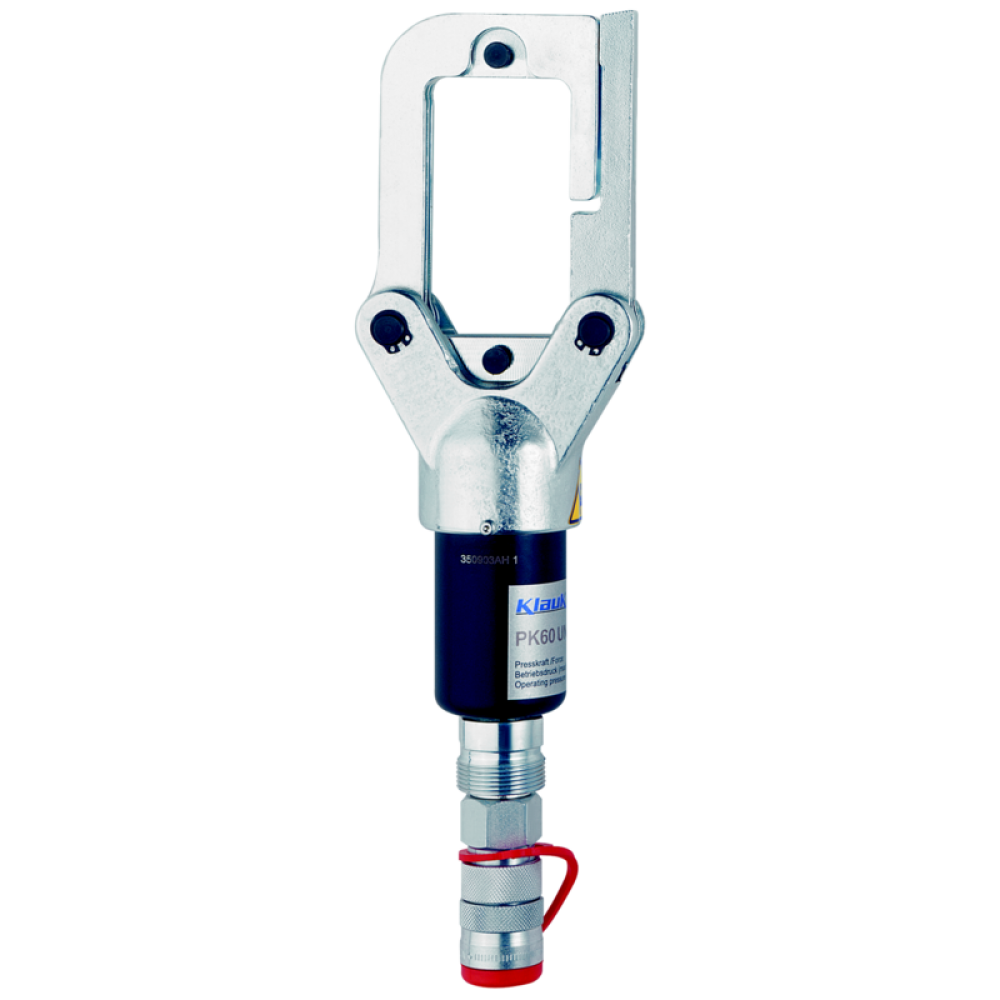

PK 60 UNV Hydraulic Universal Head

Please note not all Klauke/Greenlee items are held in stock.  Some tools and parts have extended lead times.
If a quick delivery is vital, please check with us before ordering.

• One head for crimping, cutting and punching – one tool for all
• Ideal for field operations where all common jobs can be carried out with just one tool
• For connecting to hydraulic pumps with 700 bar operating pressure for best possible crimping, cutting and punching results

Characteristics

• Universal head for quick coupling, under no pressure, rotates 360 degrees, flip top style
• Various cutting dies for aluminium and copper conductors with and without armouring as well as Al/St-Cables (ACSR)
• Dies to punch DIN rails
• Adapter for crimping dies of the Klauke/Greenlee Series 5, 18 and 22
• Crimping Force 60kN
• Stroke 42mm
• Crimping Cycle 3s to 5s (depending on cross-section)
• Number of Crimps approx. 300 at 150mm2 Cu DIN
• Cutting Range max. 40mm dia
• Number of Cuts approx. 110 at 4×70 mm2 NYY
• Punching Capacity up to 64mm dia round, up to 92x92mm square
• Operating Pressure max. 700 bar
• Length 350mm
• Weight 2.4kg
