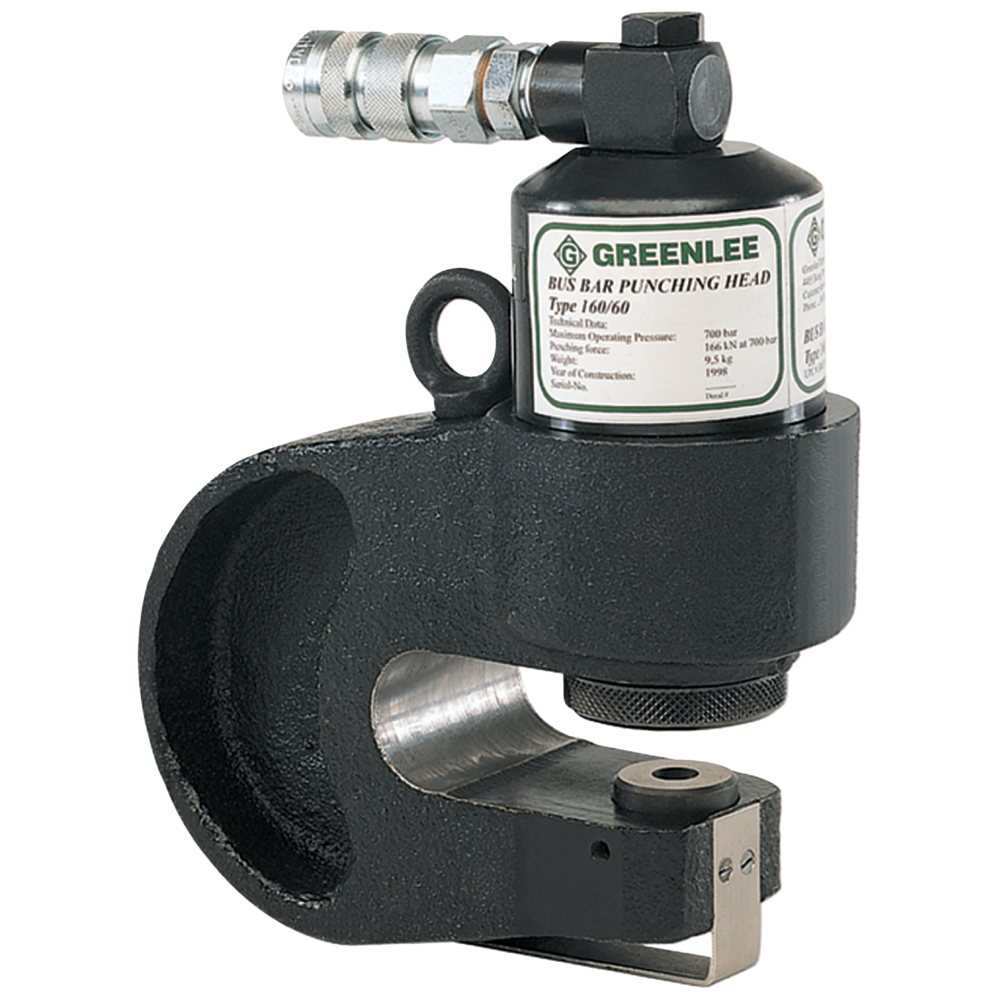

LSK 120 Hydraulic Hole Punching Head – Basic Tool

Please note not all Klauke/Greenlee items are held in stock.  Some tools and parts have extended lead times.
If a quick delivery is vital, please check with us before ordering.

 – Fast and precise cutting
– Punching in just a few seconds
– Compact design permits working in tight areas

Suitable for:
– For punching aluminium and copper up to 10mm thick
– Hole diameters 6.5-17mm
– Centric punching 120mm max. material width
– Drive with EHP 4 and AHP 700-L available

Order Info:
 – Operation with EHP 4 and AHP 700-L adapter CMGSK required.

Technical Data:
 – Maximum operating pressure 700 bar
 – Maximum compressive force 160kN
– Dimensions 234 x 174 x 88mm
– Weight approx. 9.5kg

Scope of Supply:
 – Punch and die 6.5mm  50052276
– Punch and die 8.5mm  50052284
– Punch and die 11mm  50052292
– Punch and die 13mm  50052306
– Punch and die 15mm  50052314
– Punch and die 17mm  50052322
