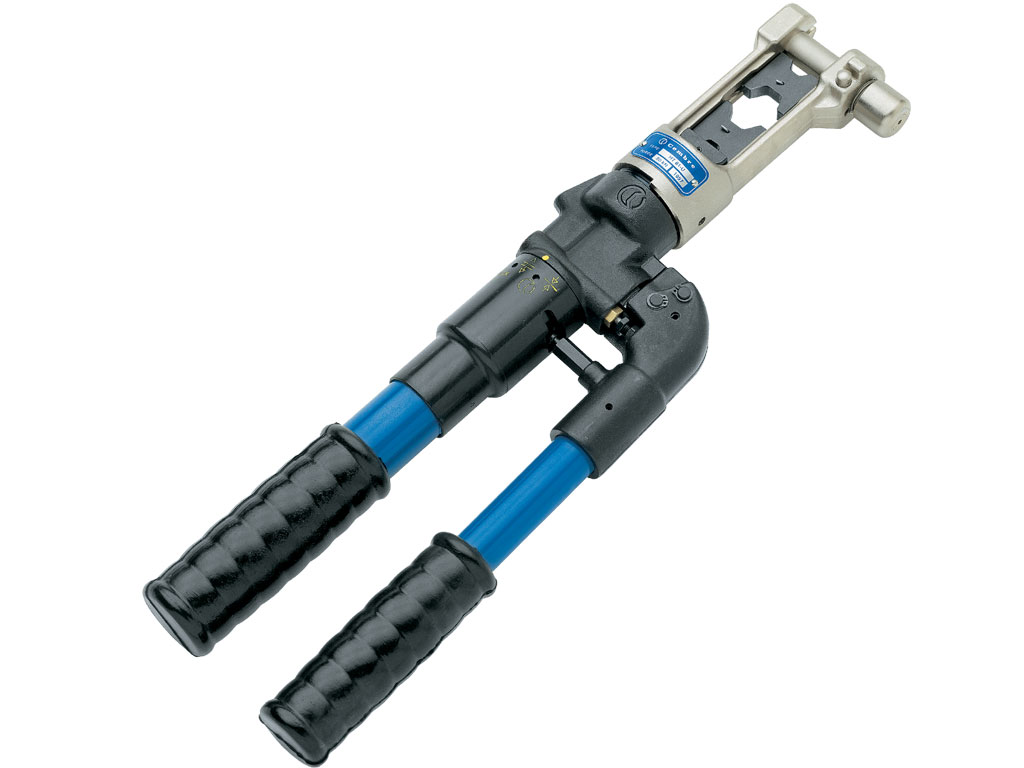

HT81-U Hydraulic Crimping Tool

This lightweight and self-contained tool features a patented closure and release mechanism for the die locking pin.

A wide range of connectors can be crimped with a small number of die sets due to their unique double-groove styling.

Dies for cutting copper, aluminium, aldrey and aluminium steel are also available

The tool features a double-speed action; a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping.

For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.

The built-in safety valve will bypass the oil supply when the maximum pressure is reached, and a pressure releasing system can easily be operated at any stage of the compression.

Crimping Force:  80kN
Dimensions LxW:  485x141mm
Weight:  3.4Kg

Main Applications – max section mm2

L.V. lugs and splices 240
“C” sleeve connectors 100
H.V. lugs and splices 200

Case VAL P3 is supplied with the tool and also holds 15 sets of dies.
Case VAL 75 is available separately and holds five sets of dies.

To accept ‘U’ style dies 10-240mm²
