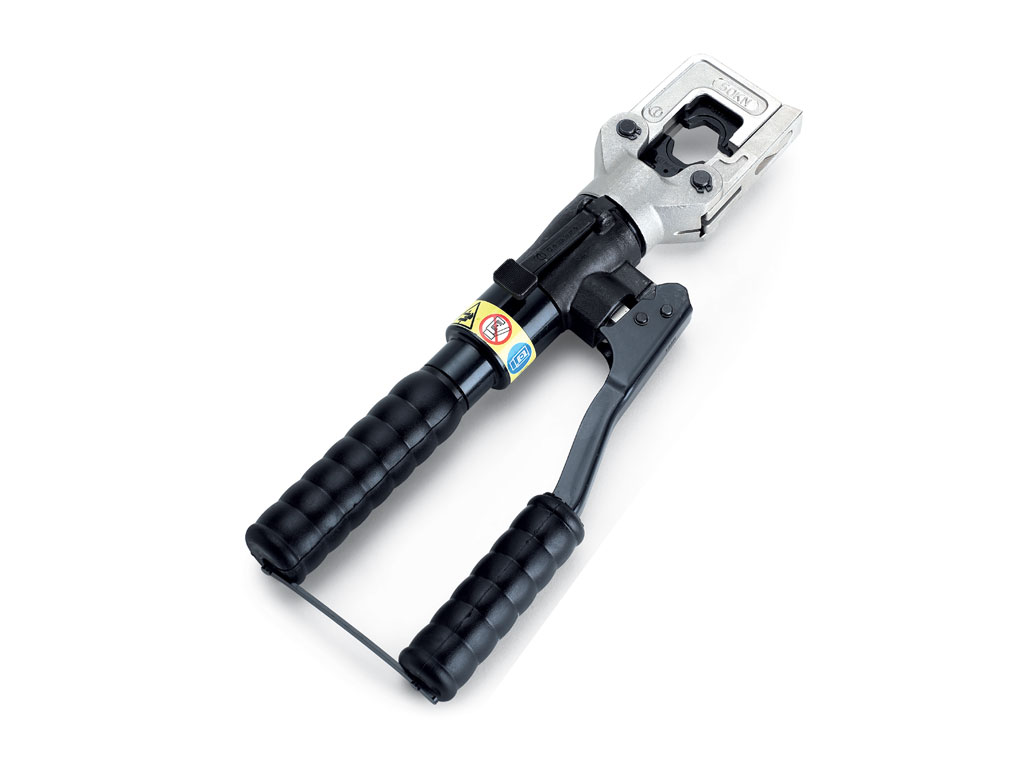

HT51 Hydraulic Crimping Tool with case

New design two speed hydraulic tool.  Light-weight and compact, this tool is ideal for working in confined spaces.

Having the benefit of spring-loaded handles, the dies can be advanced using only one hand; therefore leaving the other hand free to position the connector.

For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.

The built-in safety valve will bypass the oil supply when the maximum pressure is reached, and a pressure releasing system can easily be operated at any stage of the compression.

Crimping Force:  50kN
Dimensions LxW:  380x130mm
Weight:  2.7Kg

Main Applications – max section mm2

L.V. lugs and splices 240
“C” sleeve connectors 70
Insulated terminals 120
End sleeves 120

Case VAL P1 is supplied with the tool and also holds 20 sets of dies.
Dies are not included and must be ordered separately.
