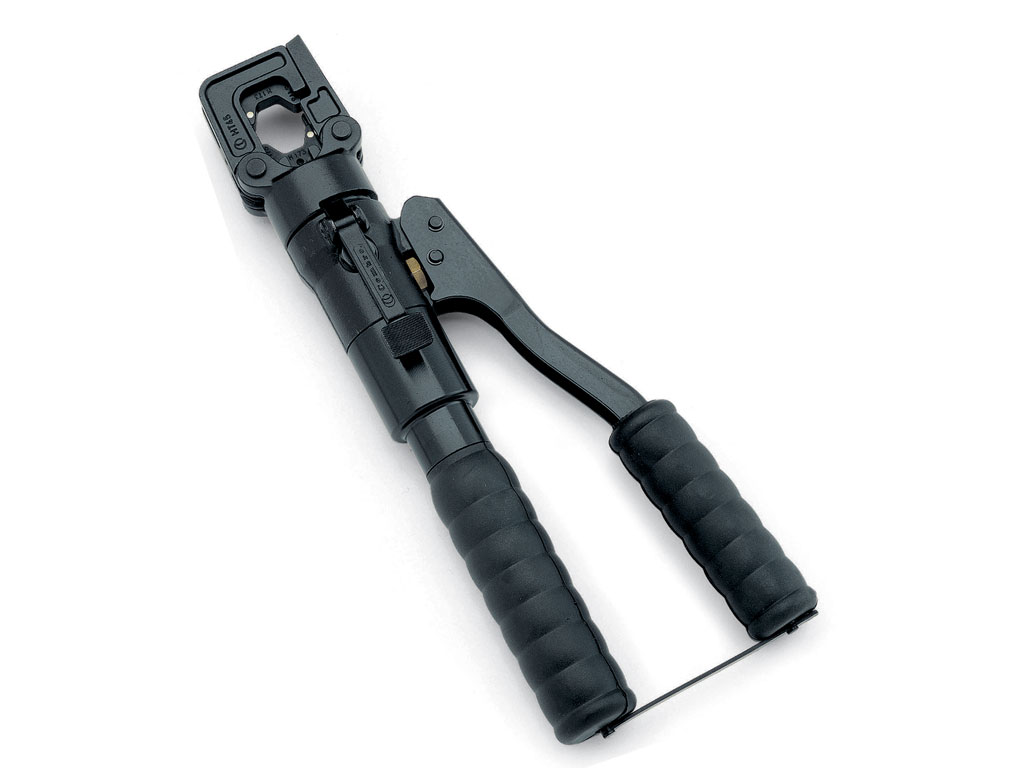

HT45-E Hydraulic Crimping Tool with case

Light-weight and compact, this tool is ideal for the compression of connectors on over-head lines and other general applications.

Having the benefit of spring-loaded handles, the dies can be advanced using only one hand; therefore leaving the other hand free to position the connector.

For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.

The built-in safety valve will bypass the oil supply when the maximum pressure is reached, and a pressure releasing system can easily be operated at any stage of the compression.

Crimping Force:  50kN
Dimensions LxW:  346x130mm
Weight:  2Kg

Main Applications – max section mm2

L.V. lugs and splices 150
“C” sleeve connectors 35
H.V. lugs and splices  70

Case VAL P1 is supplied with the tool and also holds 20 sets of dies.

To accept 4-120mm² dies
