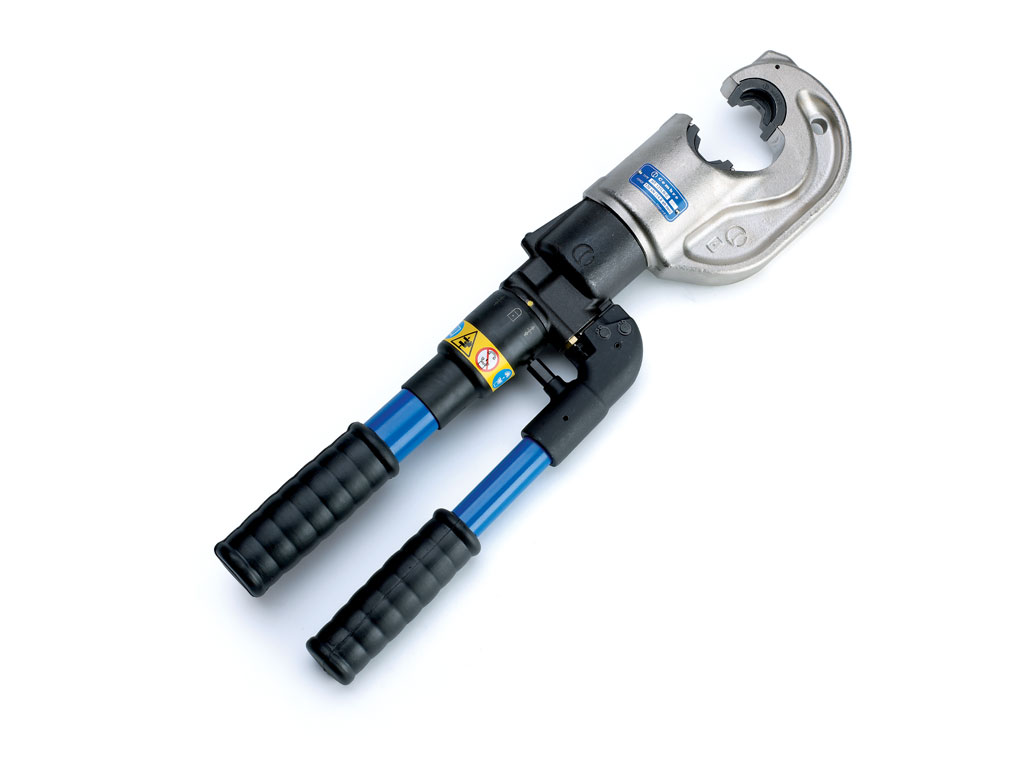

Hydraulic “C” head tool with a large 42mm jaw opening for easier introduction/removal of large size compression terminations and joints.
The tool features a double-speed action; a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping.
For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.
The built-in safety valve will bypass the oil supply when the maximum pressure is reached, and a pressure releasing system can easily be operated at any stage of the compression.
Crimping Force: 130kN
Dimensions LxW: 538x144mm
Jaw Opening: 42mm
Weight: 7.0Kg
Main Applications – max section mm2
L.V. lugs and splices 400
Insulated Terminals 240
“C” sleeve connectors 185
H.V. lugs and splices 400
Case VAL P3 is supplied with the tool and also holds 12 sets of dies.
