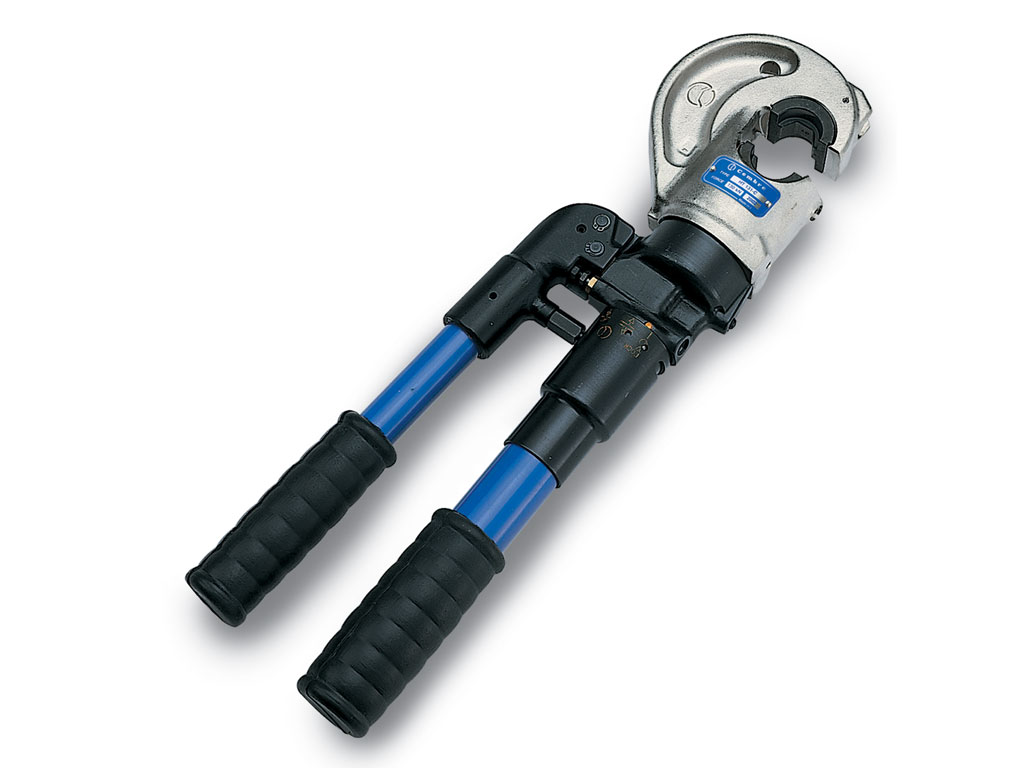

HT131-C Hydraulic Crimping Tool

This new model, self-contained robust and sturdy will accept all semi-circular slotted dies, common to most 130kN tools.

The tool features a double-speed action; a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping.

For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.The built-in safety valve will bypass the oil supply when the maximum pressure is reached and the pressure release system can easily be operated at any stage of comression.

Crimping Force:  130kN

Dimensions LxW:  473x144mm
Jaw opening:  25mm
Weight:  5.5Kg

Main Applications – max section mm2

L.V. splices 240
L.V lugs 400
Insulated terminals 240
“C” sleeve connectors 185
H.V. lugs 400
H.V. splices 240

Case VAL P3 is supplied with the tool and also holds 15 sets of dies.

To accept ‘C’ style dies 10-400mm² – Twist handle release
