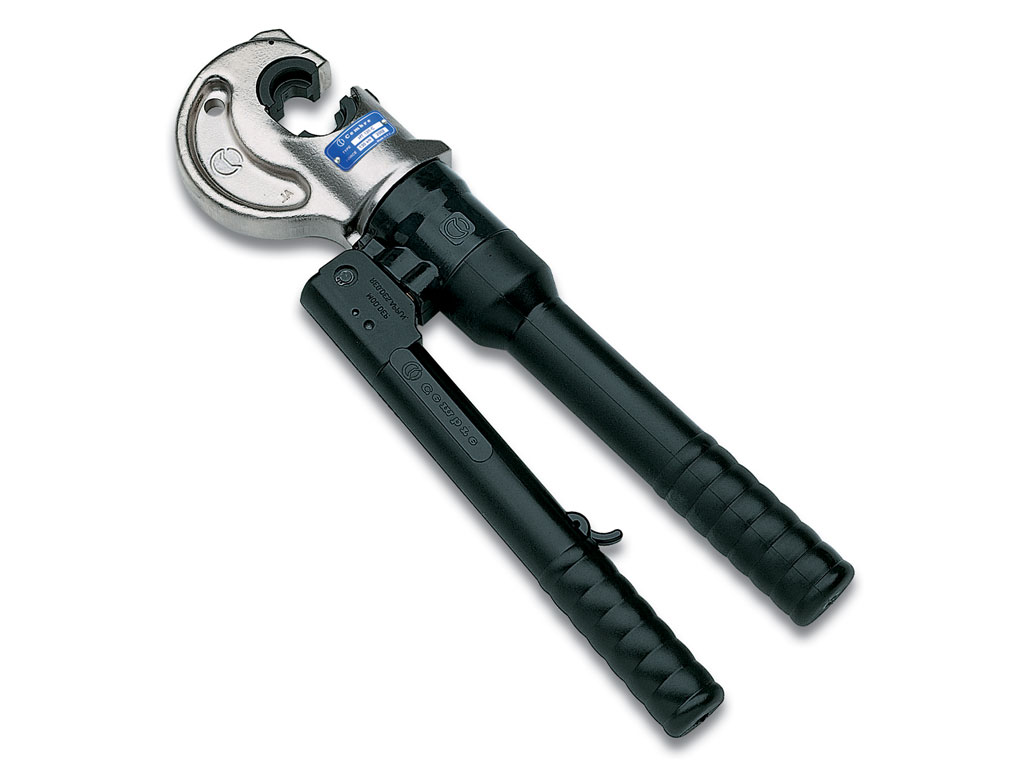

This lightweight and self-contained tool will accept the semi-circular slotted dies, common to most 130kN tools.
It is particularly suitable for installing crimp type electrical connectors for overhead line applications.
The tool features a double-speed action; a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping.
For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees.
The built-in safety valve will bypass the oil supply when the maximum pressure is reached, and a pressure releasing system can easily be operated at any stage of the compression.
Crimping Force: 120kN
Dimensions LxW: 488x138mm
Weight: 5.7Kg
Main Applications – max section mm2
L.V. splices 240
L.V lugs 400
Insulated terminals 240
“C” sleeve connectors 185
H.V. lugs 400
H.V. splices 240
Case VAL P3 is supplied with the tool and also holds 15 sets of dies.
To accept ‘C’ style dies 10-400mm² – Trigger release
