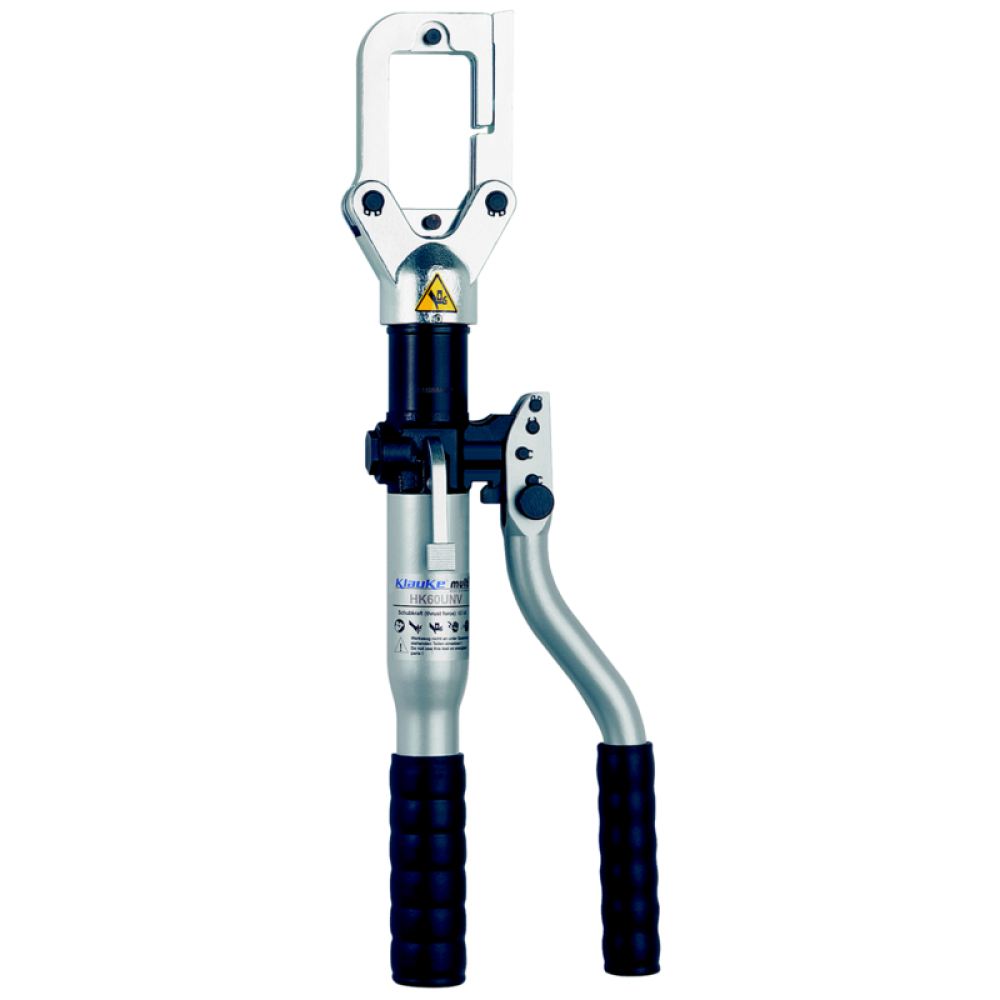

HK 60 UNV Hand-Operated Hydraulic Universal Tool

Please note not all Klauke/Greenlee items are held in stock.  Some tools and parts have extended lead times.
If a quick delivery is vital, please check with us before ordering.

• One head for crimping, cutting and punching – one tool for all
• Ideal for field operations where all common jobs can be carried out with just one tool

Characteristics

• Universal head flip-top style, rotatable
• Adapter for crimping dies of the Klauke/Greenlee Series 5, 8 and 22
• Various cutting dies for aluminium and copper conductors with and without armouring as well as Al/St-Cables (ACSR)
• Dies for cutting threaded rods and DIN rails
• Punching adapter for Greenlee punching tools
• Dies to punch DIN rails
• Light weight due to high quality aluminium housing
• 2-stage hydraulic system with fast feed and power stroke
• Automatic retraction when operation is complete
• Manual retract in case of need
• Environmentally friendly hydraulic oil, quickly biodegradable
• Crimping Force 60kN
• Stroke 42mm
• Crimping Range 6-300mm2
• Cutting Range max. 40mm dia
• Punching Capacity up to 64mm dia round, up to 92x92mm square
• Length 540mm
• Weight 3.5kg
• Ambient Temperature -20C to +40C
