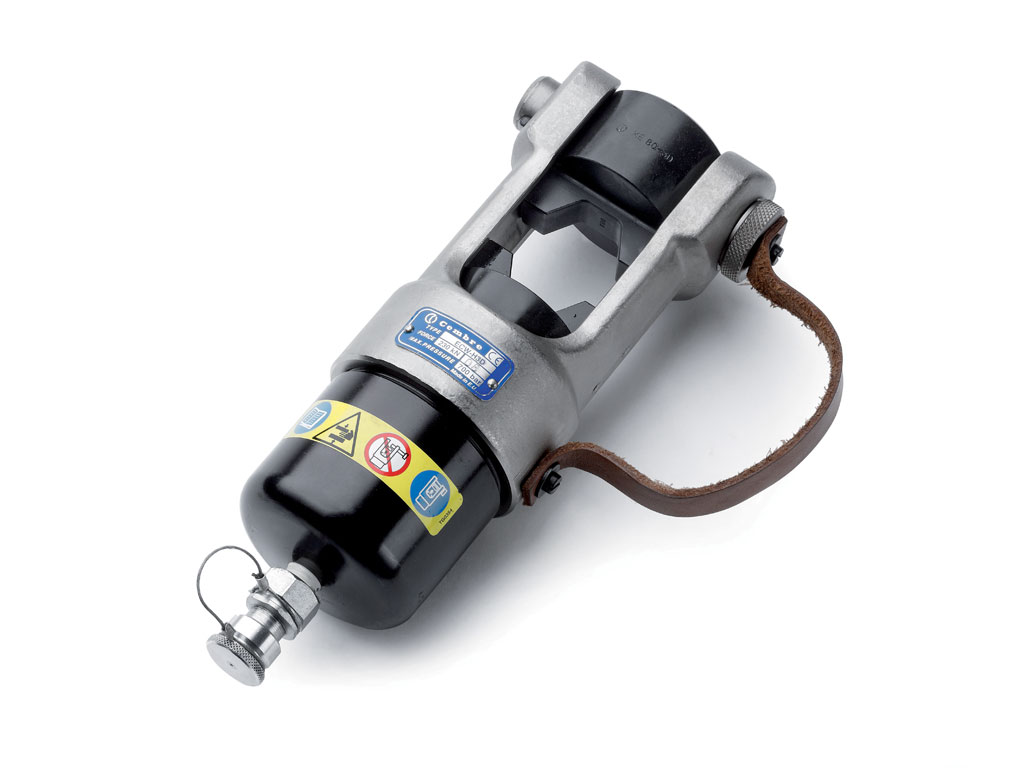

ECW-H3D Hydraulic Presshead

Hydraulic presshead complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.

Adaptor type AU230-130D is available as an optional extra enabling the head to utilise the semi-circular slotted dies which are common to most 130kN tools.  Also available is a series of dies suitable for the compression of DIN electrical connectors, and a die for cutting copper, aluminium, aldrey, aluminium-steel and steel conductors.

Crimping Force:  230kN

Dimensions LxW:  290x120mm

Weight:  5.5Kg



Main Applications – max section mm2



L.V. lugs and splices 630
Insulated Terminals 300

“C” sleeve connectors 240

H.V lugs and splices 630




Storgae case VAL ECW-H3D can be purchased separately and holds the head and 10 sets of dies.

To accept ‘3D’ style dies 400-630mm² will also accept ‘C’ style dies 10-400mm² when AU230-130D adaptor is used
