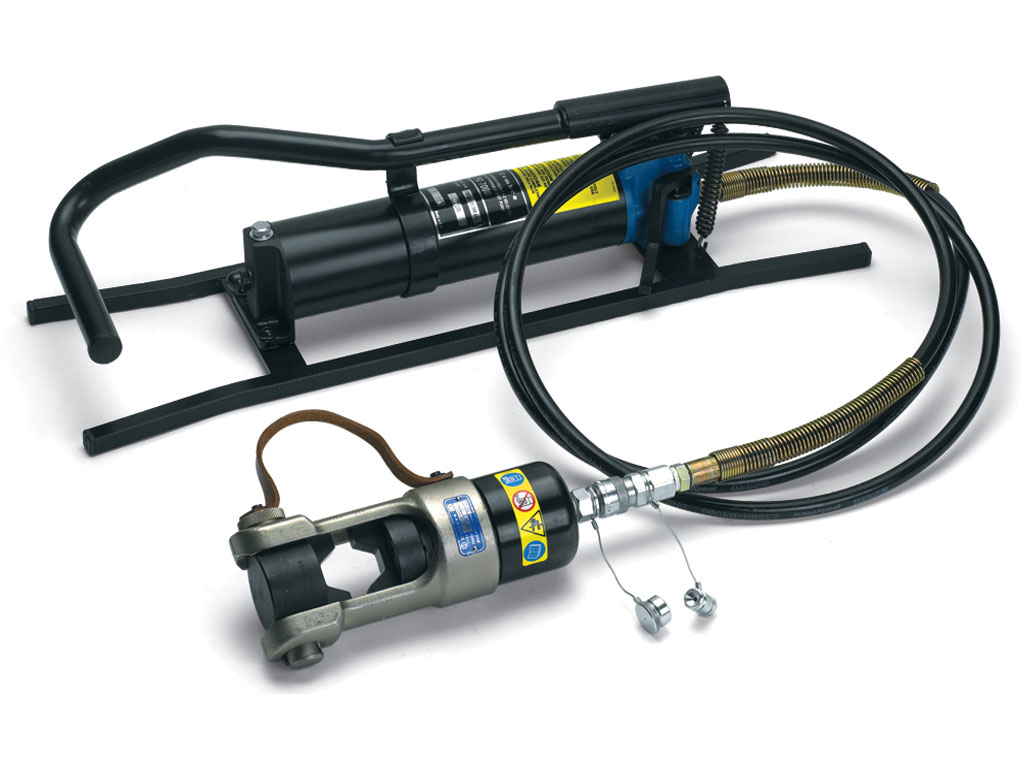

CPU1230-3D Hydraulic Crimping Unit

Crimping Unit comprising head ECW-H3D and pump PO7000.

Hydraulic units are obtained by combining the double stage hydraulic foot pump with the various hydraulic press heads available.

The use of the double speed pump considerably reduces operating time.

Main Applications:
L.V. Lugs and Splices: 630m2
Insulated Terminals: 300mm2
“C” Sleeve Connectors: 240mm2
H.V. Lugs and Splices: 630mm2

Crimping Force: 230kN
Weight: 15.3kg

Plastic storage case VAL P21 is supplied with the unit.
