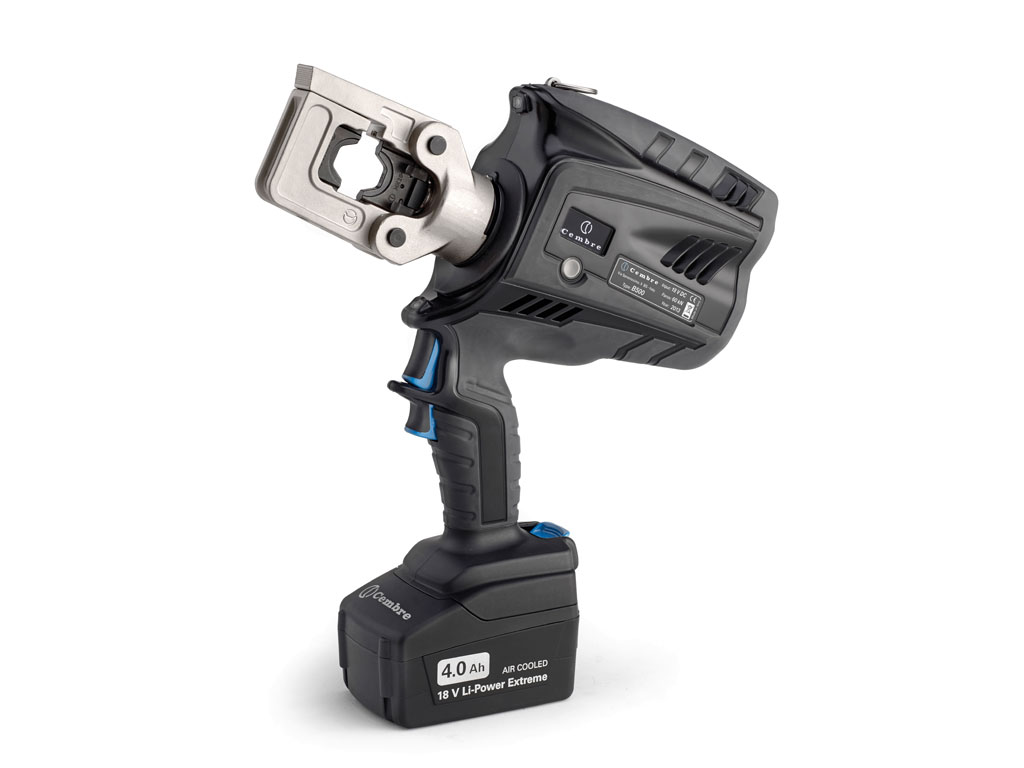

B500E 18V Cordless Hydraulic Crimping Tool

Born of the renowned B51 type crimping tool, the 63kN B500E is suitable for a wide range of connectors up to 240sqmm using die sets common to the Cembre 50kN tooling range.

• Li-lon 18V 4Ah batteries
• Revitalised hydraulic system with double speed action: a rapid approach of the dies to the connector and a slower more powerful speed for crimping.
• The OLED display provies real time tool operating information, such as crimping pressure and force being generated and battery power availability
• Designed with improved balance, the B500E is easily manageable during the crimping process
• Low noise and minimal vibration
• LED lighting of the working area
• Crimping cycle data is automatically stored on a memory card for transfer to PC by USB interface
• The tool is supplied with battery and shoulder strap, spare battery and charger, plastic case (VAL P35) suitable for storing the tool and 20 die sets

Nominal Compression Force: 63kN
Dimensions LxHxW:  300x343x83
Battery:  18V 4Ah
Weight kg:  4.2

Main Applications – Max section mm2:

L.V. Lugs and Splices: 240
Insulated Terminals:  120
End Sleeves:  120
“C” Sleeve Connectors:  70
